System.Exception: Table list error - cannot reverse engineer

[ClassyCircuit]

Description

Reverse engineer crashes.
Project type: ASP .Net Core 3.1

Steps to reproduce

Started EF Core Power Tools -> Reverse Engineer.
Added SQL Server connection, clicked on 'Test' button and connection was successful.

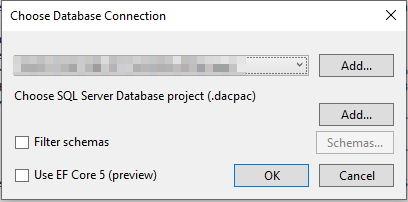

Pressed OK in this dialog:

And nothing happened, in the output window there is an error:
System.Exception: Table list error:

**Microsoft.Data.SqlClient.SqlException (0x80131904): A connection was successfully established with the server, but then an error occurred during the pre-login handshake. (provider: HTTP Provider, error: 0 - )**
   at Microsoft.Data.SqlClient.SqlInternalConnection.OnError(SqlException exception, Boolean breakConnection, Action`1 wrapCloseInAction)
   at Microsoft.Data.SqlClient.TdsParser.ThrowExceptionAndWarning(TdsParserStateObject stateObj, Boolean callerHasConnectionLock, Boolean asyncClose)
   at Microsoft.Data.SqlClient.TdsParser.ConsumePreLoginHandshake(Boolean encrypt, Boolean trustServerCert, Boolean integratedSecurity, Boolean& marsCapable, Boolean& fedAuthRequired)
   at Microsoft.Data.SqlClient.TdsParser.Connect(ServerInfo serverInfo, SqlInternalConnectionTds connHandler, Boolean ignoreSniOpenTimeout, Int64 timerExpire, Boolean encrypt, Boolean trustServerCert, Boolean integratedSecurity, Boolean withFailover, SqlAuthenticationMethod authType)
   at Microsoft.Data.SqlClient.SqlInternalConnectionTds.AttemptOneLogin(ServerInfo serverInfo, String newPassword, SecureString newSecurePassword, Boolean ignoreSniOpenTimeout, TimeoutTimer timeout, Boolean withFailover)
   at Microsoft.Data.SqlClient.SqlInternalConnectionTds.LoginNoFailover(ServerInfo serverInfo, String newPassword, SecureString newSecurePassword, Boolean redirectedUserInstance, SqlConnectionString connectionOptions, SqlCredential credential, TimeoutTimer timeout)
   at Microsoft.Data.SqlClient.SqlInternalConnectionTds.OpenLoginEnlist(TimeoutTimer timeout, SqlConnectionString connectionOptions, SqlCredential credential, String newPassword, SecureString newSecurePassword, Boolean redirectedUserInstance)
   at Microsoft.Data.SqlClient.SqlInternalConnectionTds..ctor(DbConnectionPoolIdentity identity, SqlConnectionString connectionOptions, SqlCredential credential, Object providerInfo, String newPassword, SecureString newSecurePassword, Boolean redirectedUserInstance, SqlConnectionString userConnectionOptions, SessionData reconnectSessionData, Boolean applyTransientFaultHandling, String accessToken, DbConnectionPool pool)
   at Microsoft.Data.SqlClient.SqlConnectionFactory.CreateConnection(DbConnectionOptions options, DbConnectionPoolKey poolKey, Object poolGroupProviderInfo, DbConnectionPool pool, DbConnection owningConnection, DbConnectionOptions userOptions)
   at Microsoft.Data.ProviderBase.DbConnectionFactory.CreatePooledConnection(DbConnectionPool pool, DbConnection owningObject, DbConnectionOptions options, DbConnectionPoolKey poolKey, DbConnectionOptions userOptions)
   at Microsoft.Data.ProviderBase.DbConnectionPool.CreateObject(DbConnection owningObject, DbConnectionOptions userOptions, DbConnectionInternal oldConnection)
   at Microsoft.Data.ProviderBase.DbConnectionPool.UserCreateRequest(DbConnection owningObject, DbConnectionOptions userOptions, DbConnectionInternal oldConnection)
   at Microsoft.Data.ProviderBase.DbConnectionPool.TryGetConnection(DbConnection owningObject, UInt32 waitForMultipleObjectsTimeout, Boolean allowCreate, Boolean onlyOneCheckConnection, DbConnectionOptions userOptions, DbConnectionInternal& connection)
   at Microsoft.Data.ProviderBase.DbConnectionPool.TryGetConnection(DbConnection owningObject, TaskCompletionSource`1 retry, DbConnectionOptions userOptions, DbConnectionInternal& connection)
   at Microsoft.Data.ProviderBase.DbConnectionFactory.TryGetConnection(DbConnection owningConnection, TaskCompletionSource`1 retry, DbConnectionOptions userOptions, DbConnectionInternal oldConnection, DbConnectionInternal& connection)
   at Microsoft.Data.ProviderBase.DbConnectionInternal.TryOpenConnectionInternal(DbConnection outerConnection, DbConnectionFactory connectionFactory, TaskCompletionSource`1 retry, DbConnectionOptions userOptions)
   at Microsoft.Data.ProviderBase.DbConnectionClosed.TryOpenConnection(DbConnection outerConnection, DbConnectionFactory connectionFactory, TaskCompletionSource`1 retry, DbConnectionOptions userOptions)
   at Microsoft.Data.SqlClient.SqlConnection.TryOpen(TaskCompletionSource`1 retry, SqlConnectionOverrides overrides)
   at Microsoft.Data.SqlClient.SqlConnection.Open(SqlConnectionOverrides overrides)
   at Microsoft.Data.SqlClient.SqlConnection.Open()
   at ErikEJ.EntityFrameworkCore.SqlServer.Scaffolding.SqlServerFasterDatabaseModelFactory.Create(DbConnection connection, DatabaseModelFactoryOptions options) in C:\Code\EFCorePowerTools\src\GUI\RevEng.Core\SqlServerFasterDatabaseModelFactory.cs:line 127
   at ErikEJ.EntityFrameworkCore.SqlServer.Scaffolding.SqlServerFasterDatabaseModelFactory.Create(String connectionString, DatabaseModelFactoryOptions options) in C:\Code\EFCorePowerTools\src\GUI\RevEng.Core\SqlServerFasterDatabaseModelFactory.cs:line 107
   at ReverseEngineer20.TableListBuilder.GetTableDefinitions() in C:\Code\EFCorePowerTools\src\GUI\RevEng.Core\TableListBuilder.cs:line 40
   at efreveng.Program.Main(String[] args) in C:\Code\EFCorePowerTools\src\GUI\efreveng\Program.cs:line 33
ClientConnectionId:26897428-6ca5-42e0-9b75-f4a3de41a512

   at EFCorePowerTools.Handlers.ReverseEngineer.ResultDeserializer.BuildTableResult(String output) in C:\projects\efcorepowertools\src\GUI\EFCorePowerTools\Handlers\ReverseEngineer\ResultDeserializer.cs:line 47
   at ReverseEngineer20.ReverseEngineer.EfRevEngLauncher.GetTablesInternal(String arguments) in C:\projects\efcorepowertools\src\GUI\EFCorePowerTools\Handlers\ReverseEngineer\EfRevEngLauncher.cs:line 64
   at ReverseEngineer20.ReverseEngineer.EfRevEngLauncher.GetTables(String connectionString, DatabaseType databaseType, SchemaInfo[] schemas) in C:\projects\efcorepowertools\src\GUI\EFCorePowerTools\Handlers\ReverseEngineer\EfRevEngLauncher.cs:line 40
   at EFCorePowerTools.Handlers.ReverseEngineer.TableListBuilder.GetTableDefinitions(Boolean useEFCore5) in C:\projects\efcorepowertools\src\GUI\EFCorePowerTools\Handlers\ReverseEngineer\TableListBuilder.cs:line 39
   at EFCorePowerTools.Handlers.ReverseEngineerHandler.GetTables(String connectionString, DatabaseType databaseType, Boolean useEFCore5, SchemaInfo[] schemas) in C:\projects\efcorepowertools\src\GUI\EFCorePowerTools\Handlers\ReverseEngineerHandler.cs:line 354
   at EFCorePowerTools.Handlers.ReverseEngineerHandler.<ReverseEngineerCodeFirst>d__3.MoveNext() in C:\projects\efcorepowertools\src\GUI\EFCorePowerTools\Handlers\ReverseEngineerHandler.cs:line 98

Further technical details

Version 2.4.217.0

SQLite ADO.NET Provider included: 1.0.109.0
SQLite EF6 DbProvider in GAC - No

System.Data.SQLite DDEX provider - No
SQLite Simple DDEX provider - Yes

Database engine: SQL Server

Visual Studio version: VS 2019, 16.7.7

[ClassyCircuit]

Update:
I enabled this flag: TrustServerCertificate under advanced settings and the error is gone:

You should probably add some warning to the error message, so other people know what to try in this case.

[ErikEJ]

I think this only happens if you connect to a older, poorly maintained version of SQL Server - which exact version are you connecting to?

[ClassyCircuit]

[ErikEJ]

Hmm.. Latest 2016 CU. You are hit by this change: dotnet/SqlClient#391 - but I cannot start parsing SqlClient error messages.
