Added ptrops to stdlib #12101

awr1 · 2019-08-31T20:19:38Z

Unforunately pointer arithmetic keeps coming up every so often which kinda suggests "maybe we should have this as a stdlib module." Although I am not a huge fan of "C-like functionality that is often more trouble than its worth" 😐

juancarlospaco · 2019-09-02T21:18:39Z

I think those can be template or {.inline.} ❔ So tiny. 🤔

mratsim · 2019-09-02T21:45:17Z

lib/pure/ptrarith.nim

+## arithmetic is sometimes desirable for low-level ops/FFI with C.
+
+func `+`*[T](x: ptr[T]; offset: SomeInteger): ptr[T] =
+  cast[ptr[T]](cast[ByteAddress](x) + cast[ByteAddress](offset * sizeof(T)))


I think the + should be a +%, do pointer wraparound like unsigned int? or is it undefined behaviour like signed integers?

I assume undefined. But yes I like +% better as a less accessible operator

seems better to use offset as a function name here - you want to be able to look for where these operations are used instead of hiding them behind an overload

see also: https://doc.rust-lang.org/std/primitive.pointer.html - it has docs, examples, risks, etc that hint at how compilers think about this - the names are pretty standard too meaning it's easier to cross-reference with other languages / port code.

I actually meant this +% for the ByteAddress summation but +% for the op name sounds good as well: https://nim-lang.org/docs/system.html#%2B%25%2Cint64%2Cint64

I feel like offset is too much. Libraries that import this probably have lots of pointer arithmetics to do.

I use +! for pointer additions, the ! screams "dangerous".

+! at least is unique and thus possible to grep for.

I don't really see the argument that you use pointer operations "a lot" - in particular, you typically don't stack multiple pointer ops in a single expression so even with a name like offset (that's easier to google for than %!), you won't end up with excessively long lines because there will only be one of them

If you have lots and lots of pointer arithmetic to do, perhaps that's a sign that you should wrap it in something safer?

That's for writing the wrapper ;)

mratsim · 2019-09-02T21:47:15Z

lib/pure/ptrarith.nim

+func `+`*[T](x: ptr[T]; offset: SomeInteger): ptr[T] =
+  cast[ptr[T]](cast[ByteAddress](x) + cast[ByteAddress](offset * sizeof(T)))
+
+func `-`*[T](x: ptr[T]; offset: SomeInteger): ptr[T] =


It should be a template.
I expect those are used in very tight loops.

I dare say emitting assembly might also be considered if somehow compilers cannot generate optimized code.

I agree they should all be templates.
Adding a single line documentation comment would be cool too
(I know is obvious what they do, but new people will not understand).

dom96 · 2019-09-02T22:18:10Z

lib/pure/ptrarith.nim

+#
+
+## This module offers operators for performing arithmetic on raw pointer types
+## in Nim. Nim is *not* C: using pointer arithmetic in Nim should be avoided (if


Indeed, and because of this I don't think we should be making pointer arithmetic easier by adding a module like this.

Maybe add the same logic as documentation explaining how can be done,
what are the problems doing so can bring on your code (pros/cons, explanation),
but not really adding it as a new std lib module ❔

We have lenientops, bitops, endians already for people to spend happy time debugging.

We can add a big bold Pointer arithmetics are very sharp tools. This module is unsafe, comes without guarantees and might cause you to spend endless hours in a debugger, eat your cat or cause the heat death of the universe.

I kind of like the idea @juancarlospaco has, maybe as an addition to the Nim tutorial

That being said the reason I thought I thought it should be a module was because it came up frequently enough (in the forums) for people to want something like this in full knowledge of its foot-shooting properties

Add it to the Nim Manual, Not the Tutorial, noobs should not start with Pointer Arithmethics for a Hello World. 😆

I generally don't see warnings that don't say why something is unsafe as terribly useful - they're not going to stop anyone from using the module. the module does come with guarantees: it will offset pointers, nothing more.

The offset operation itself is harmless.

It is accessing memory through these new pointers that is unsafe, because the new location might be uninitialized, aliased or unaligned. The aliasing in particular brings several interesting issues to the table, because it opens the floodgates to a host of aliasing optimization bugs that generally are only visible when compiling in release mode, meaning crashes that start when you ship the product.

meaning crashes that start when you ship the product.

Btw, you can test your software in -d:release mode too. ;-)

well, we're talking about risks, and pointer aliasing is a clear and poorly understood risk, judging from the number of stack overflow posts about it, and it's specially devious because it only happens when optimizations are turned on. using this module without understanding them seems bad, and not for the cat - adding the module to the std lib without understanding them seems even worse.

arnetheduck · 2019-09-03T18:08:37Z

lib/pure/ptrarith.nim

@@ -0,0 +1,25 @@
+#


how about calling it ptrops similar to bitops?

arnetheduck · 2019-09-03T21:03:53Z

generally, ByteAddress is an int which means it will raise range errors. depending on the address space this will raise on arithmetic, specially on 32-bit where stuff like kernel options might affect the absolute values - see for example how linux uses the address space right around the 2gb mark (which is where spurious raises start to happen) depending on kernel options: https://en.wikipedia.org/wiki/Virtual_address_space#Linux

I'd recommend against merging this, and thinking about how and if ByteAddress makes sense at all, in general, as well as conducting a more thorough investigation on pointers and risks involved before adding anything like this to the std lib.

awr1 · 2019-09-03T21:07:08Z

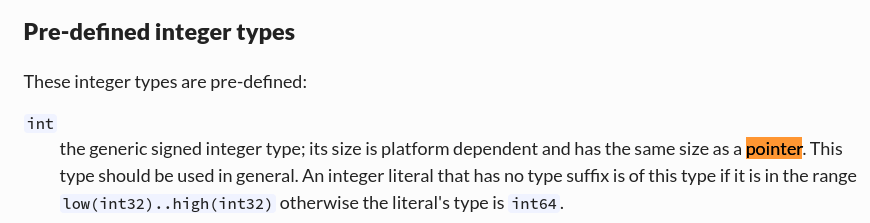

@arnetheduck ByteAddress is just a type alias to int for "readability" reasons, IIRC int (Nim is different from C in this respect) is always guaranteed to be equal to pointer size on the system.

Perhaps ByteAddress should be deprecated because of its redundancy, but I don't know.

arnetheduck · 2019-09-03T21:15:05Z

@awr1 yes, but consider what will happen with your patch on a 32-bit machine when you have a pointer-to-byte pointing to 0x7fffffff (a valid address) and add one to it? keep in mind that + for int raises on overflow.

juancarlospaco · 2019-09-03T21:25:33Z

lib/pure/ptrops.nim

+## in Nim. Nim is *not* C: using pointer arithmetic in Nim should be avoided (if
+## possible, use `array[T]`, `ptr UncheckedArray[T]`, etc.), however, pointer
+## arithmetic is sometimes desirable for low-level ops/FFI with C. **Pointer
+## arithmetic is a very sharp tool. This module is unsafe, comes without


Suggested change

## arithmetic is a very sharp tool. This module is unsafe, comes without

##

## Risks

## -----

##

## - Pointer Arithmetic is a very sharp tool. This module is unsafe.

## - Nim is *not* C: Using Pointer Arithmetic in Nim should be avoided.

## - Other reason why it can be problematic.

## - Other reason why it can be problematic.

mratsim · 2019-09-03T22:59:09Z

lib/pure/ptrops.nim

+
+template `+%`*[T](x: ptr[T]; offset: SomeInteger): ptr[T] =
+  ## **Unsafe.** Adds `offset * sizeof(T)` bytes from the pointer `x`.
+  cast[ptr[T]](cast[ByteAddress](x) + cast[ByteAddress](offset * sizeof(T)))


You need to use +% here as well to avoid int range checks
https://nim-lang.org/docs/system.html#%2B%25%2CIntMax32%2CIntMax32

mratsim · 2019-09-03T22:59:21Z

lib/pure/ptrops.nim

+
+template `-%`*[T](x: ptr[T]; offset: SomeInteger): ptr[T] =
+  ## **Unsafe.** Subtracts `offset * sizeof(T)` bytes from the pointer `x`.
+  cast[ptr[T]](cast[ByteAddress](x) - cast[ByteAddress](offset * sizeof(T)))


juancarlospaco · 2019-09-04T20:00:39Z

Add a {.warning: "Some warning about this is unsafe".} ❔
Thats one of the reasons the warning pragma exists anyway. 🤔

Araq · 2019-09-04T22:38:31Z

Sorry, rejected. Pointer arithmetic isn't that hard to do in Nim and people who need to do it can already figure out how to do it.

krux02 · 2019-09-04T23:14:36Z

I agree with Araq here. Pointer arithmetic already works when you cast to ptr UncheckedArray[T] instead of just ptr T.

arnetheduck · 2019-09-29T08:38:37Z

we've added something similar to stew where we'll play around with it: https://github.com/status-im/nim-stew/blob/master/stew/ptrops.nim

but yeah, longer term it's usually better to use something else

Added ptrarith to stdlib

4ac78b6

mratsim reviewed Sep 2, 2019

View reviewed changes

dom96 requested changes Sep 2, 2019

View reviewed changes

arnetheduck reviewed Sep 3, 2019

View reviewed changes

documentation, operator change, made procs into templates

1f57cdc

awr1 force-pushed the ptrarith branch from 0a9eb2a to 09ac22b Compare September 3, 2019 19:02

awr1 added 2 commits September 3, 2019 14:03

changed module name from ptrarith to ptrops

09ac22b

Forgot to switch module name in tests

b7f4831

awr1 changed the title ~~Added ptrarith to stdlib~~ Added ptrops to stdlib Sep 3, 2019

arnetheduck mentioned this pull request Sep 3, 2019

ByteAddress broken for its intended purpose #12122

Closed

juancarlospaco reviewed Sep 3, 2019

View reviewed changes

mratsim reviewed Sep 3, 2019

View reviewed changes

awr1 closed this Sep 5, 2019

timotheecour mentioned this pull request Jan 29, 2021

fusion/pointers: add pointer arithmetic operators nim-lang/fusion#21

Open
